Name: Big Diaphragm 34mm 24K Double Sides Microphone Capsule
Brand: MaiAo - Diy Microphone
SKU: LA-34C
Price: 159 USD
Availability: InStock

Description

34mm 24k Gold double side Capsule Large Diaphragm Microphone Cartridge Core Recording Condenser Mic Capsule

All MIC from our Store are DIY by us,

all are hand made, don’t have any copy in the marcket.

We could make microphone base on your request for timbre or for any occasions such as KTV.

MOQ 1pc for customized order.

Welcome OEM/ODM/ Wholesale order, pls contact us to discuss.

Specification:

Large Diaphragm Cartridge/Core:

A diameter of 34 mm / 1.33″ Inch capacitor large diaphragm core, while the sound head diaphragm thickness of only 0.4 microns, more delicate, more Discrimination and clear treble sound collection makes the microphone sound head, soft alto deep and rich bass vividly feedback, and no coloration, truly a reprise of the original.

Element: Φ34 mm Pressure Gradient Transducer

Gold-plating: Single-faced

Polar Pattern: Uni-directional

Frequency Response: 20Hz-20KHz

Sensitivity : -33dB±3dB(0dB=1V/Pa at 1KHz)

Equivalent Noise Level : ≤15dB A

Max. Input SPL : 138dB (at 1KHz ≤1% T.H.D)

Power Requirement: 48V Phantom Power

Features:

Sound atmospheric, dynamic big

Large Diaphragm Cartridge/Core:

This Double Sides Microphone Capsule is A diameter of 34 mm / 1.33″ Inch capacitor large diaphragm core, while the sound head diaphragm thickness of only 0.4 microns, more delicate, more Discrimination and clear treble sound collection makes the microphone sound head, soft alto deep and rich bass vividly feedback, and no coloration, truly a reprise of the original.

Important Usage Notes for Gold‑Plated Capsules:

Do not touch the internal diaphragm. Handle only by the metal backplate.

Protect from moisture. When not in use, store the microphone in a sealed container in a relatively dry environment.

A preamp circuit board is required. The capsule needs a polarization voltage between 3V‑70V provided by a preamp board. Connecting it directly without a preamp will produce no sound.

Packing:

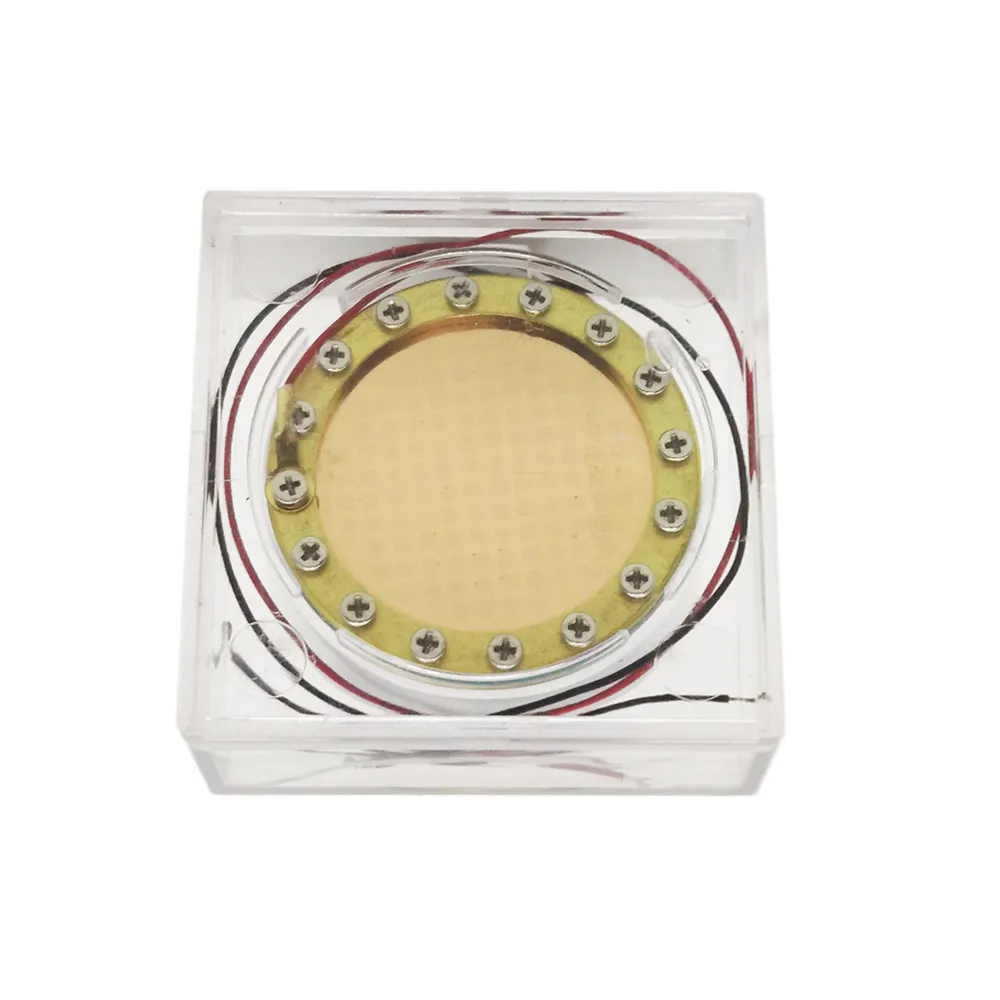

1pc 34mm capsule box packing+ 1pc stand

Application:

Accessories for DIY condenser microphone, repair microphone, or upgrade mic.
