34mm capacitor Condenser microphone DIY bulk parts

Record sound sample:

Specification :

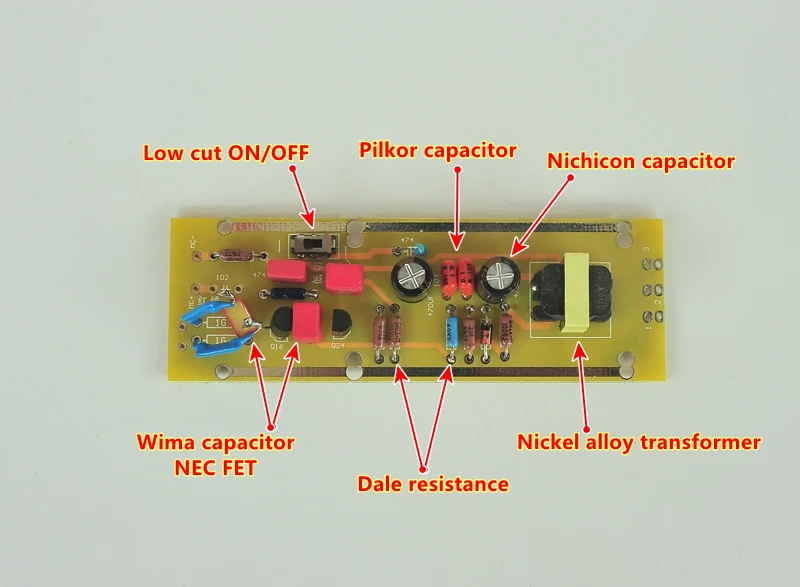

34mm gold-plated capacitor capsule DC biased condenser microphone assembly kit, Condenser microphone DIY set using high-power nickel transformer output, various brands of capacitor components, for vocal and musical instrument recording effect is excellent

It requires 48V power to work

Output level: 400mV, 1kHz

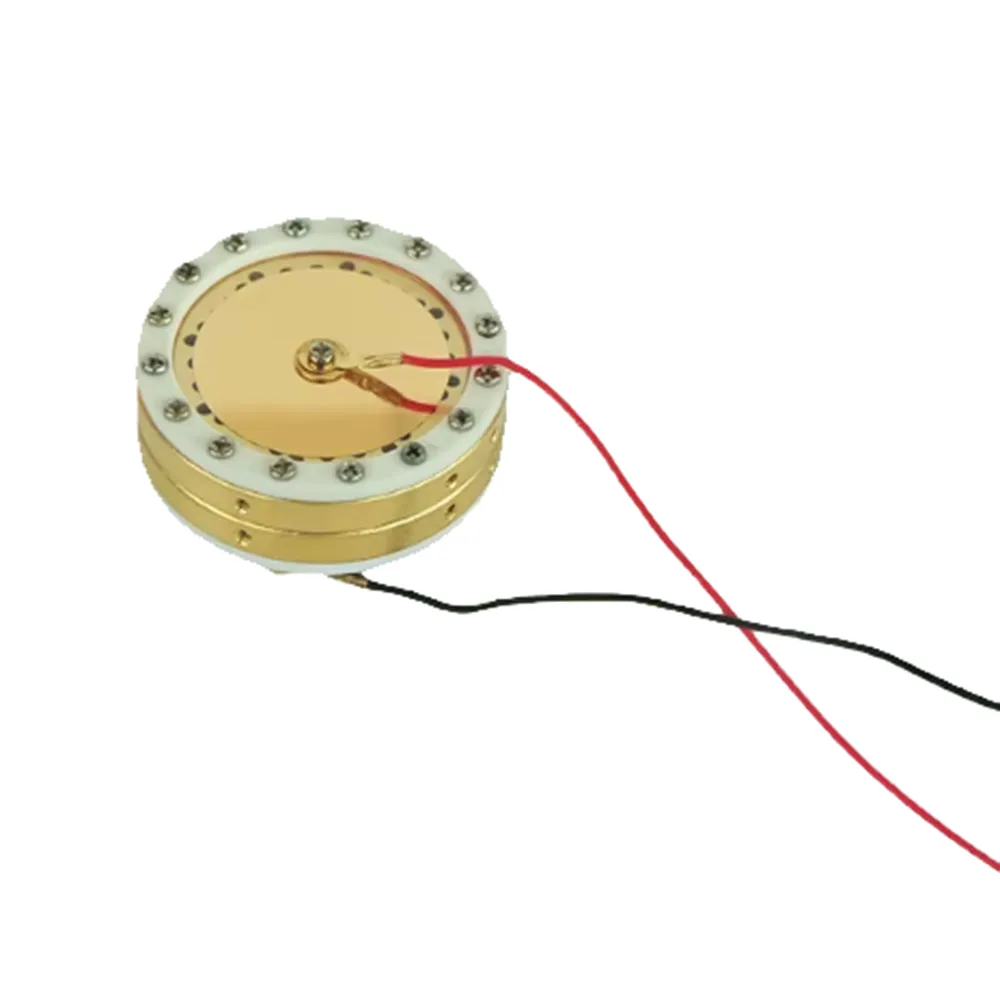

DC biased capacitor capsule, 34mm in diameter and 13mm in height

Delivery of cartridge holder, wire, screw, microphone tailstock

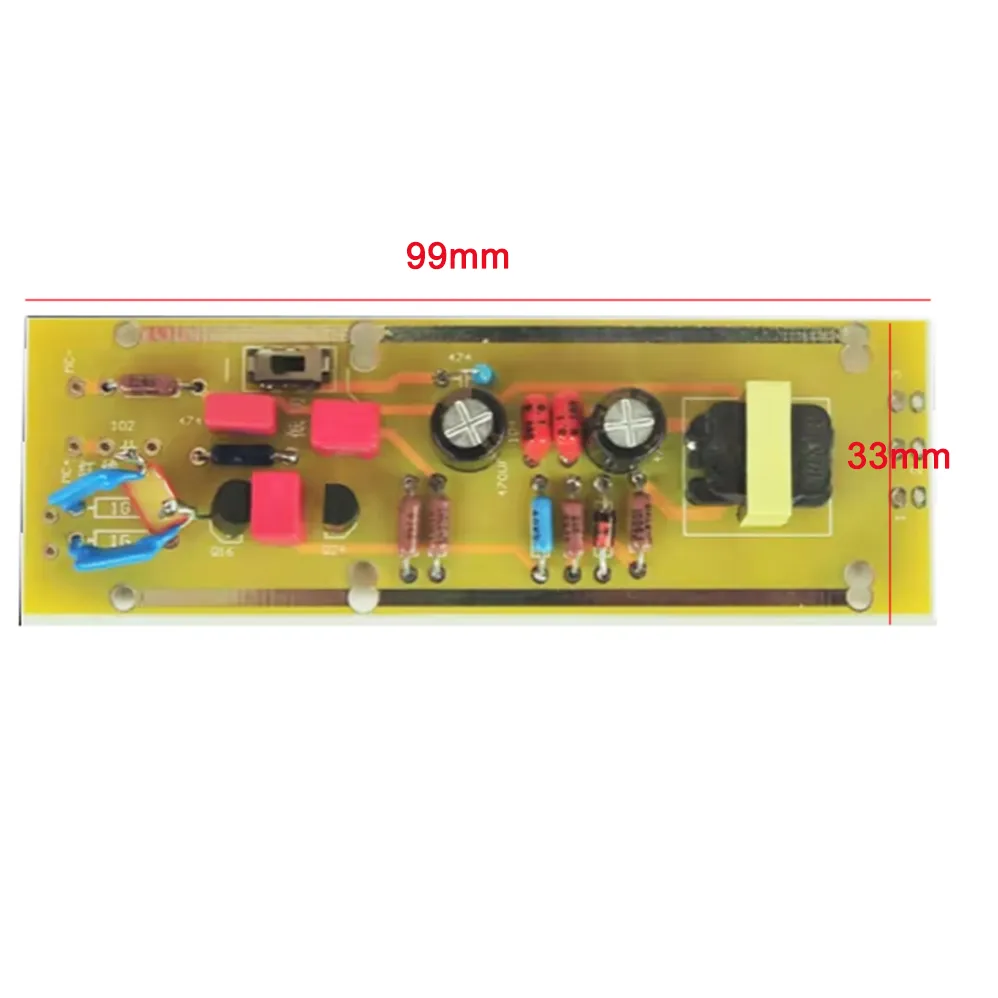

PCB length: 99mm*33mm

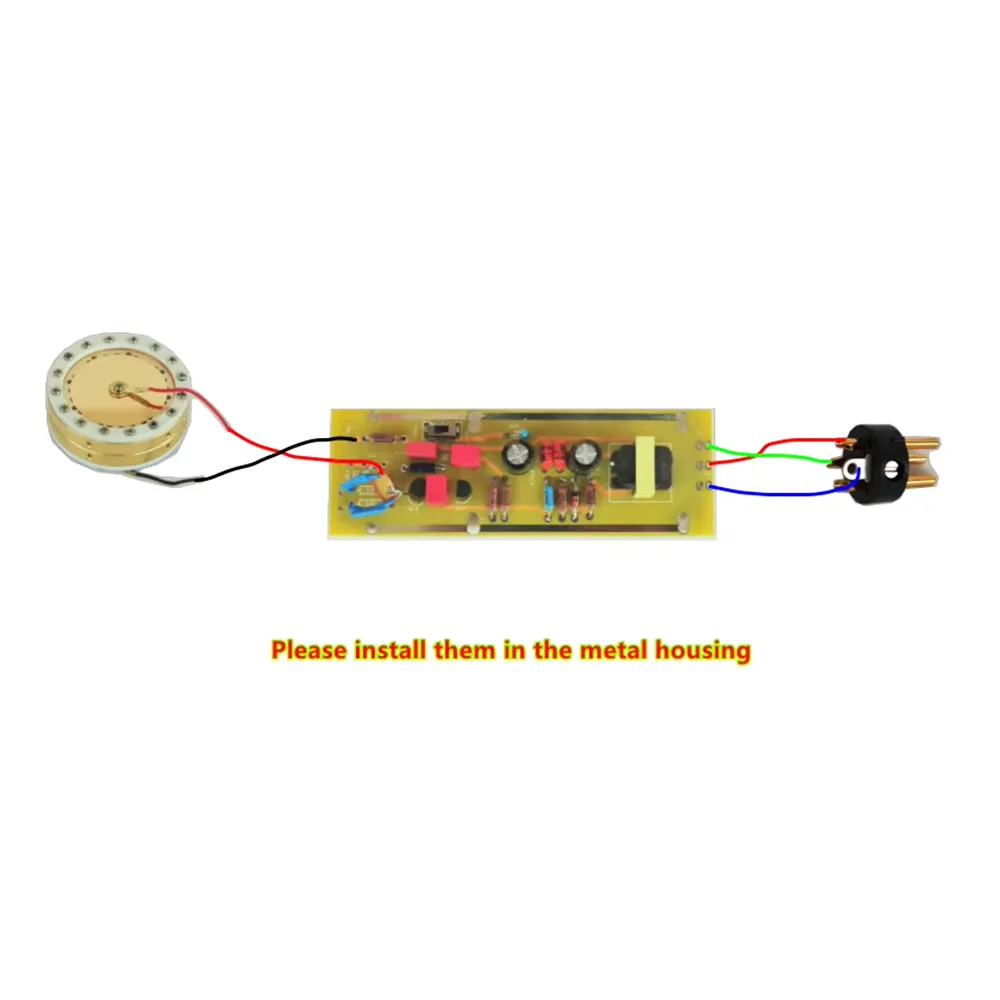

Please install it in the metal housing

Packing:

1 set uninstall microphone circuit set.

If you want body, pls find it in our website.

Application:

Professional Studio Vocal Recording, Home Studio & Project Recording, Live Streaming & Podcasting, Voice-Over & Audiobook Narration, Broadcast & Radio Broadcasting, Film & TV Dialogue/ADR Recording, Music Instrument Miking (Acoustic Guitar, Piano, etc.), Field Recording & Location Sound, YouTube & Content Creation, Karaoke & Home Singing Practice, Conference & Interview Recording, Theater & Stage Performance, Educational & Online Teaching, Mobile Recording (with Portable Interfaces), Demo & Songwriting Sessions
