How to DIY your own U47 Microphone with low cost?

There’s something truly special about building your own DIY U47. It’s not just about saving money — it’s about connecting with the art of audio. When you build a handmade microphone, every recording session becomes more personal. You know exactly what’s inside your mic. You understand how it works. And most importantly, you get that legendary U47 sound without spending a fortune.

For decades, the Neumann U47 has been one of the most celebrated studio condenser microphones in recording history. Iconic vocalists from Frank Sinatra to modern artists have trusted the U47 for its warm, detailed tone. But owning an original today is nearly impossible — they’re rare, expensive, and often in need of restoration.

That’s why the DIY U47 movement has grown so popular among audio enthusiasts. By building your own vintage-style condenser microphone, you can capture that classic character while enjoying the satisfaction of building it yourself.

Why Build a Handmade U47-Style Condenser Microphone?

There are several reasons why audio creators choose the DIY U47 path:

Affordability – An original Neumann U47 can cost tens of thousands of dollars. A well-built DIY U47 gives you similar tone at a fraction of the cost.

Learning – Building a handmade microphone teaches you about audio electronics, circuit design, and how components affect sound.

Customization – You can choose components that match your personal taste — brighter, warmer, or more neutral.

Repairability – When you build your own capacitor microphone, you can easily service and upgrade it later.

Pride – There’s a deep sense of satisfaction in recording with a studio condenser microphone you built with your own hands.

What You Need to Build a DIY U47 Microphone

Building a DIY U47 requires several key components. Here’s what you’ll need:

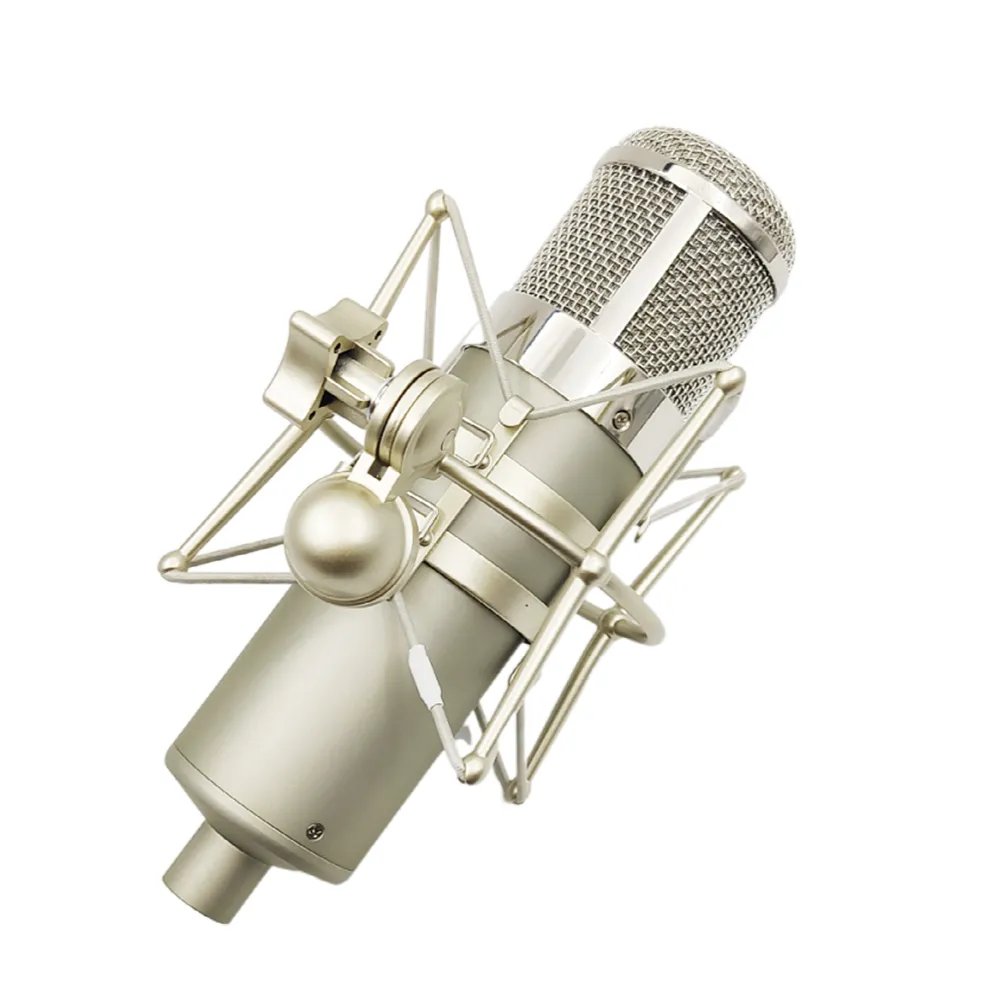

1. Microphone Body
The housing that holds everything together. For a DIY U47, you’ll want a body that closely matches the original design — both for acoustic performance and visual authenticity. Choose a metal body with proper shielding and the classic U47 profile.

2. Capsule – The Most Important Component
The capsule is the heart of any condenser microphone. For a DIY U47, you need a large-diaphragm 34mm capsule with a K47 or M7 style. This is the component that captures your voice and gives the microphone its signature warmth and detail. A high-quality capsule is the foundation of a great handmade microphone.

3. Output Transformer
A BV8-style transformer is essential for the classic U47 sound. It shapes the frequency response and adds that smooth, rich character that makes the U47 legendary.

4. Vacuum Tube
The tube is another critical component in your DIY U47. EF86, EF800, or alternative pentode tubes are commonly used. Different tubes offer different tonal textures, so choose carefully based on your sound preferences.

5. Circuit Board
A well-designed PCB simplifies assembly and ensures reliability. The circuit board is the backbone of your handmade capacitor microphone.

6. Passive Components
High-quality resistors, film capacitors, and connectors make a noticeable difference in sound quality. Brands like WIMA and VISHAY are preferred in premium DIY U47 builds.

7. Power Supply
U47-style condenser microphones require an external power supply, typically 105V or 120V. A clean, stable power supply is essential for low-noise performance.

Which Components Matter Most in a DIY U47?

If you’re building a DIY U47 on a budget, prioritize these two components:

1. The Capsule
This is where your sound begins. A high-quality 34mm capsule with K47 or M7 style gives you the warmth, clarity, and depth that define the U47. The rest of the circuit amplifies what the capsule captures — so start with the best capsule you can afford.

2. The Output Transformer
This shapes your tone more than any other component after the capsule. A good BV8-style transformer gives you silky highs, smooth mids, and a warm low end.

Where to Find DIY U47 Parts

At MaiAo, we specialize in supplying high-quality components for DIY U47 builds. We offer:

• Replica U47 microphone bodies – sturdy metal bodies with classic U47 design and proper shielding
• 34mm large-diaphragm capsules – high-quality K47 and M7 style capsules for authentic U47 tone
• Circuit boards – PCB designed for U47 circuits
• Passive component kits – resistors, capacitors, and connectors from trusted brands
• Complete build solutions – all the parts you need in one place

We have been serving DIY condenser microphone builders for over 15 years. Every component we supply is tested and proven in our own builds. Whether you’re building your first handmade microphone or your fiftieth, we’re here to support your project.

Start Your DIY U47 Build Today

Building your own DIY U47 is a rewarding project that gives you professional sound at a fraction of the cost of an original Neumann. With the right components and a little patience, you can create a studio condenser microphone that rivals the classics.

At MaiAo, we supply key U47 DIY components including high-quality replica U47 microphone bodies and 34mm large-diaphragm capsules. Browse our selection to get started on your U47 build today.
