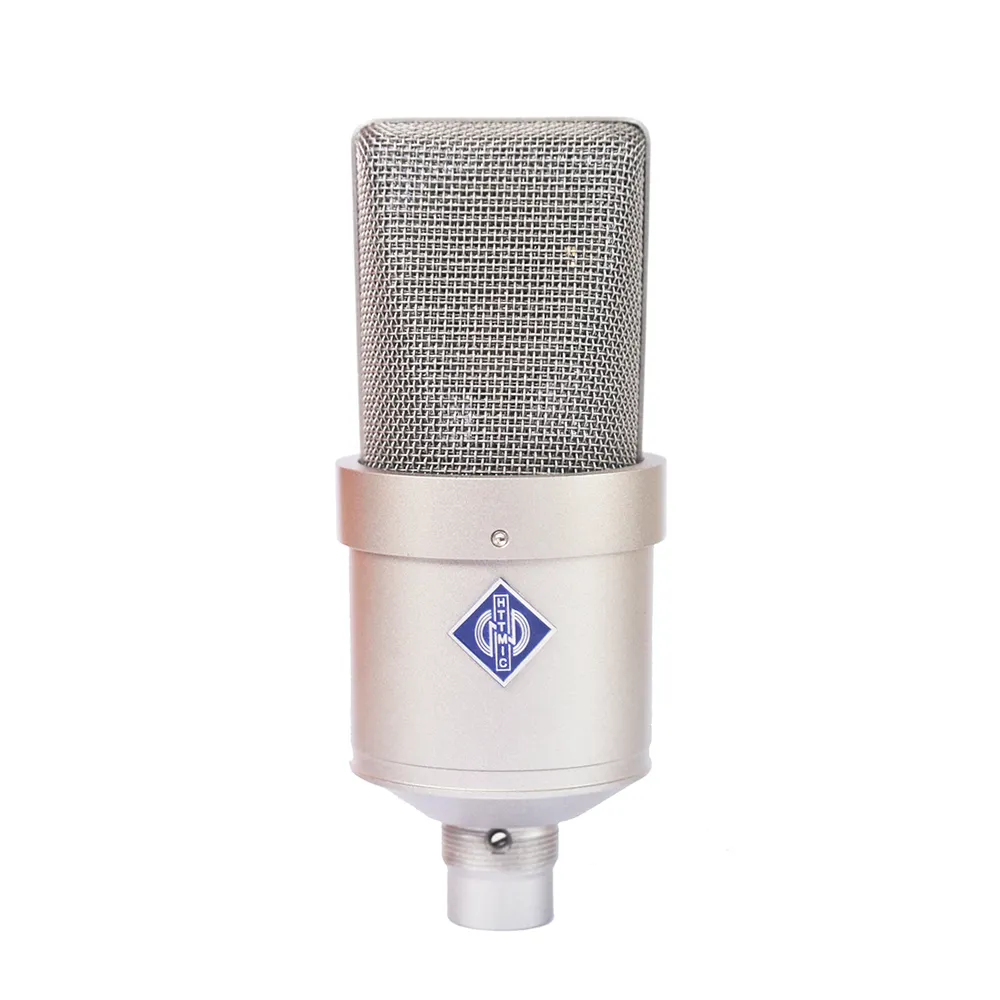

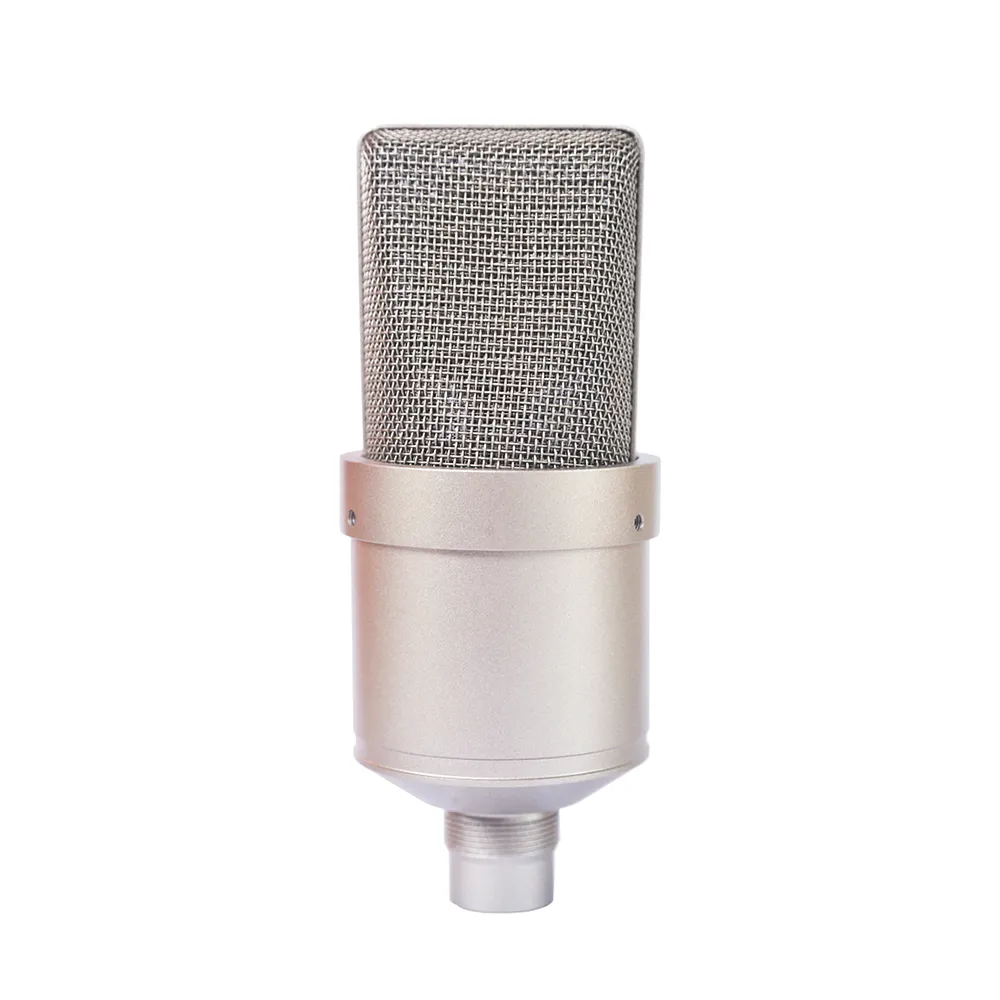

DIY Large Diaphragm Condenser Microphone Cardioid

MA TLM103: Music Record Sound Sample:

Specification :

Model: MA TLM103 DIY Large Diaphragm Condenser Microphone Cardioid
Type:  Cardioid capsule
Power Supply: 48V Phantom Power
Capsule Size: Φ34mm

Frequency response: 25HZ-20KHZ

Sensitivity: -41dB+/-2dB (0dB=1V/Pa at 1KHz)

Directional characteristics: cardioid directionality

Output impedance: 200R+/-30% (at 1KHz)

Connection method: XLR Canon line

Load impedance: ≥ 1000R

Equivalent noise level: ≤ 10dB A (IEC581-5)

Maximum input sound pressure level: 140dB (THD ≤ 1.0% at

Maximum output voltage: 450MV

Weight: 510G

Size: D46 * 205MM

Power supply method: 48V phantom power supply

Description:

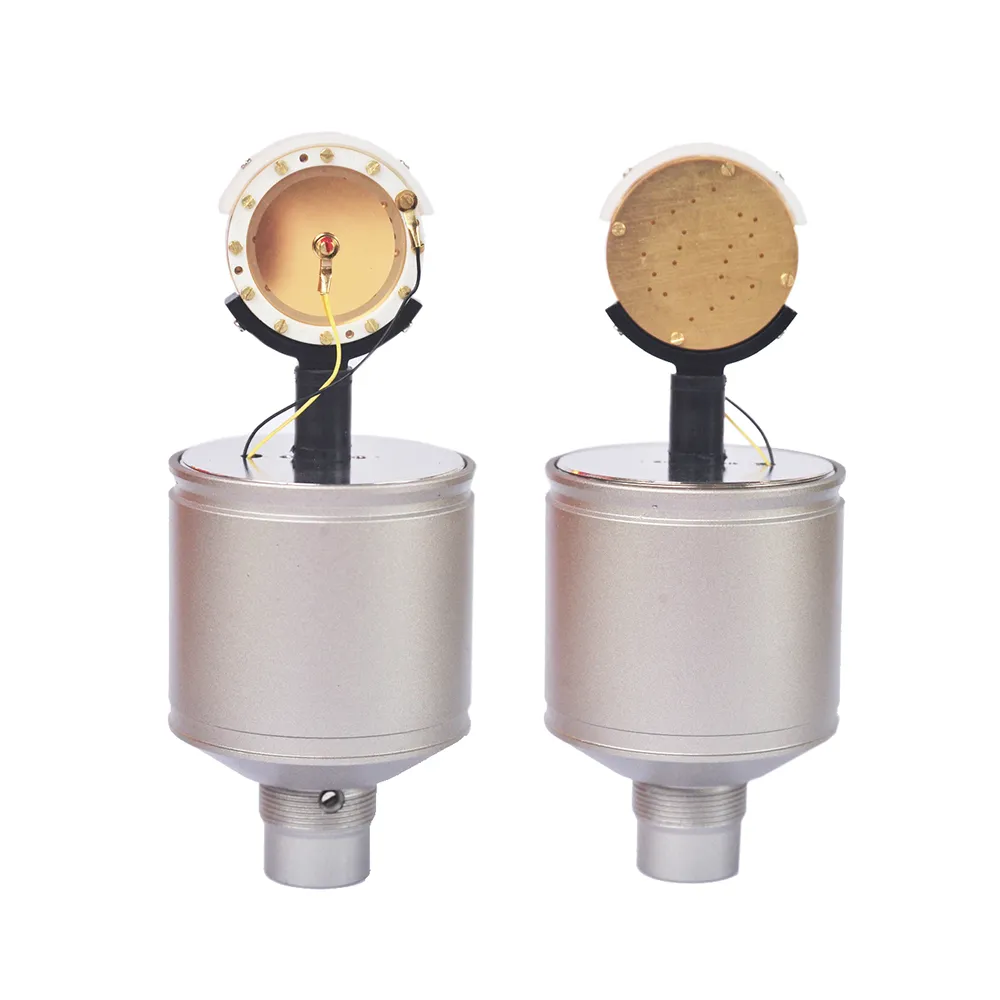

Adopting a 34MM M7 capsule, pure manual film installation, and the industry’s unique dot matrix vacuum evaporation technology, it improves sound density and makes the original sound more transparent.

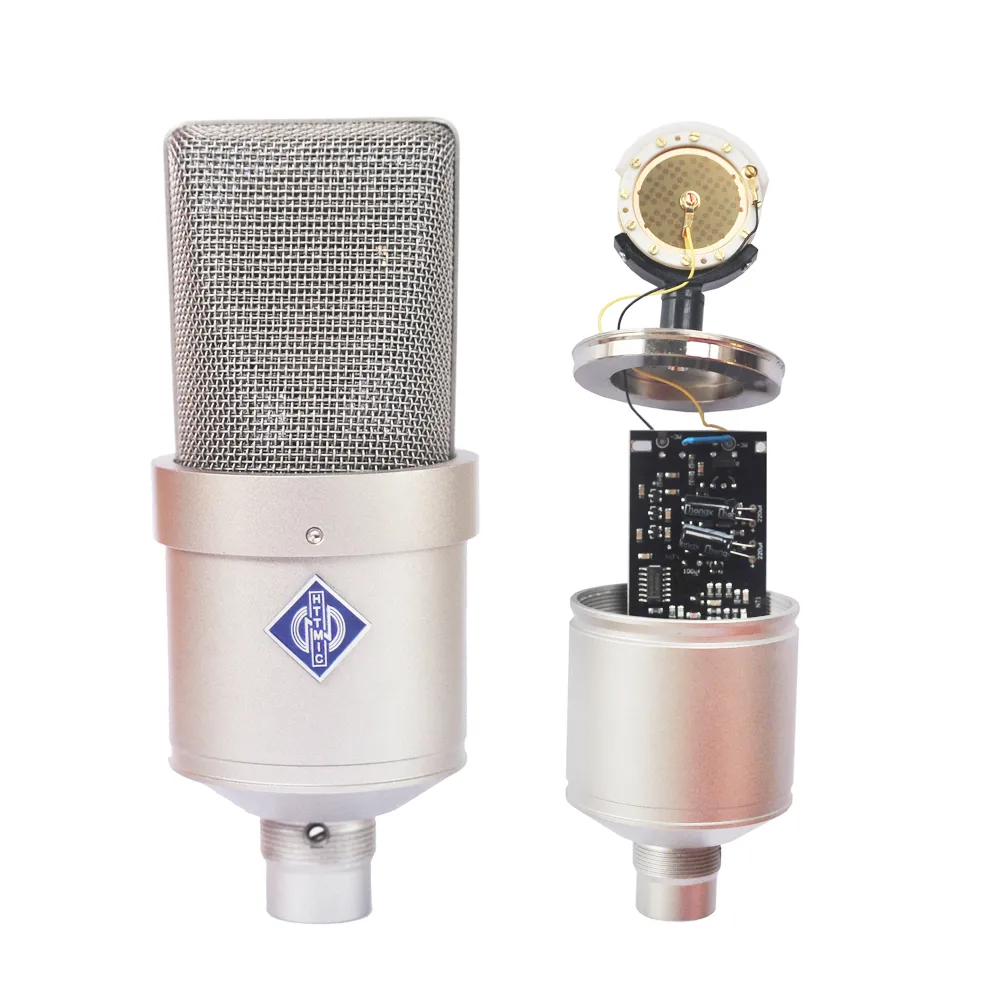

The circuit is a FET Class A amplification circuit for front-end amplification, with a complex following circuit that can increase impedance, reduce bottom noise, and increase sound pressure

Using a 14 pin logic digital chip as an anode boost circuit can reduce the noise caused by the boost of segmented components

Backboard acoustic holes consistent with the original German 103

Application:

Professional Studio Vocal Recording, Home Studio & Project Recording, Live Streaming & Podcasting, Voice-Over & Audiobook Narration, Broadcast & Radio Broadcasting, Film & TV Dialogue/ADR Recording, Music Instrument Miking (Acoustic Guitar, Piano, etc.), Field Recording & Location Sound, YouTube & Content Creation, Karaoke & Home Singing Practice, Conference & Interview Recording, Theater & Stage Performance, Educational & Online Teaching, Mobile Recording (with Portable Interfaces), Demo & Songwriting Sessions

Packing:
1pc Finished Assembled Condenser Microphone.

Click here to order “48v Phantom Power“.

Click here to order “Shock Mount“
