DIY Condenser Microphone U87 Circuit Capsule and Parts

Record sound sample:

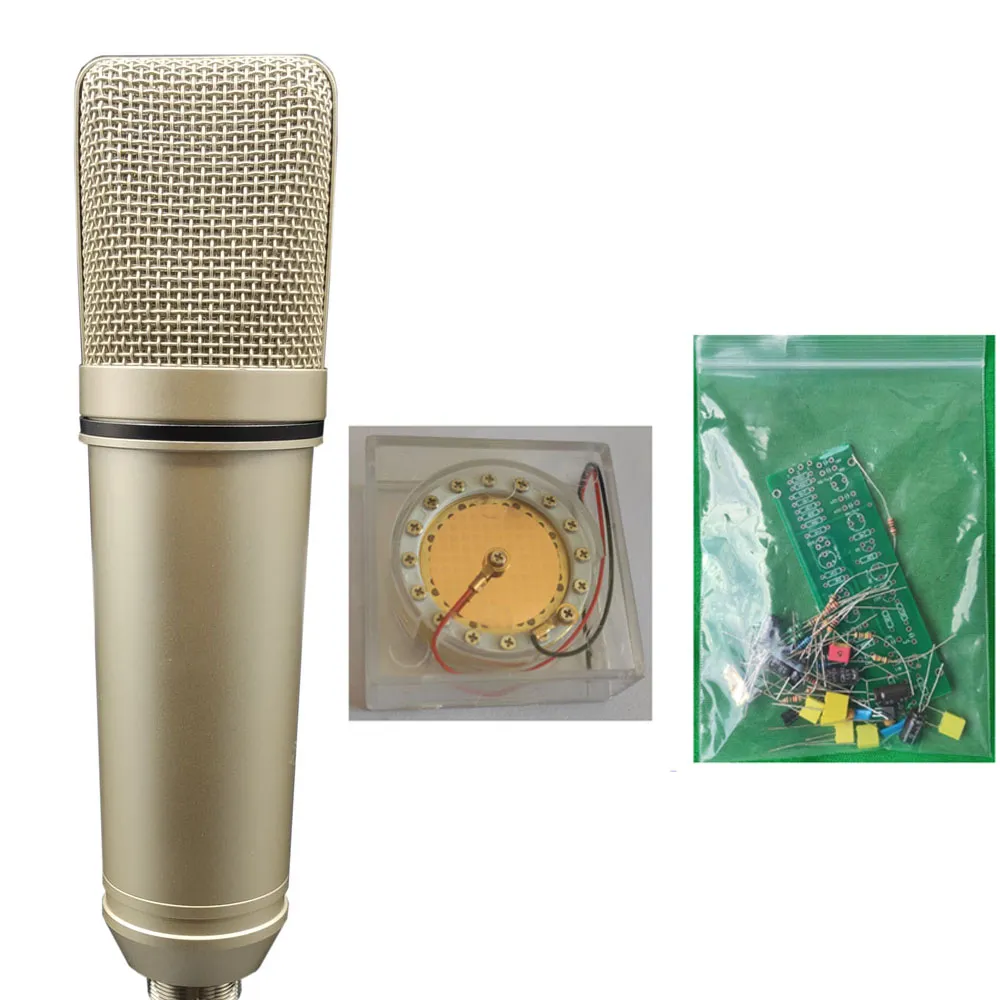

1:1 U87 body with 34mm golden capsule, original DIY by MaiAo, DIY Condenser Microphone U87 Circuit Capsule and Parts, buy this set to hand make U87 by yourself.

Specification :

Professional Recording Condenser Microphone for studio｜48V Phantom Power for Singing & Live Streaming｜Handmade DIY Custom U87AI Style Microphone

1:1 body, 34mm Large diaphragm| 48V Phantom Power | Condenser Microphone | Cardioid Polar Pattern
Dimensions:55mm (Diameter) × 210mm (Height) | Weight: 500g

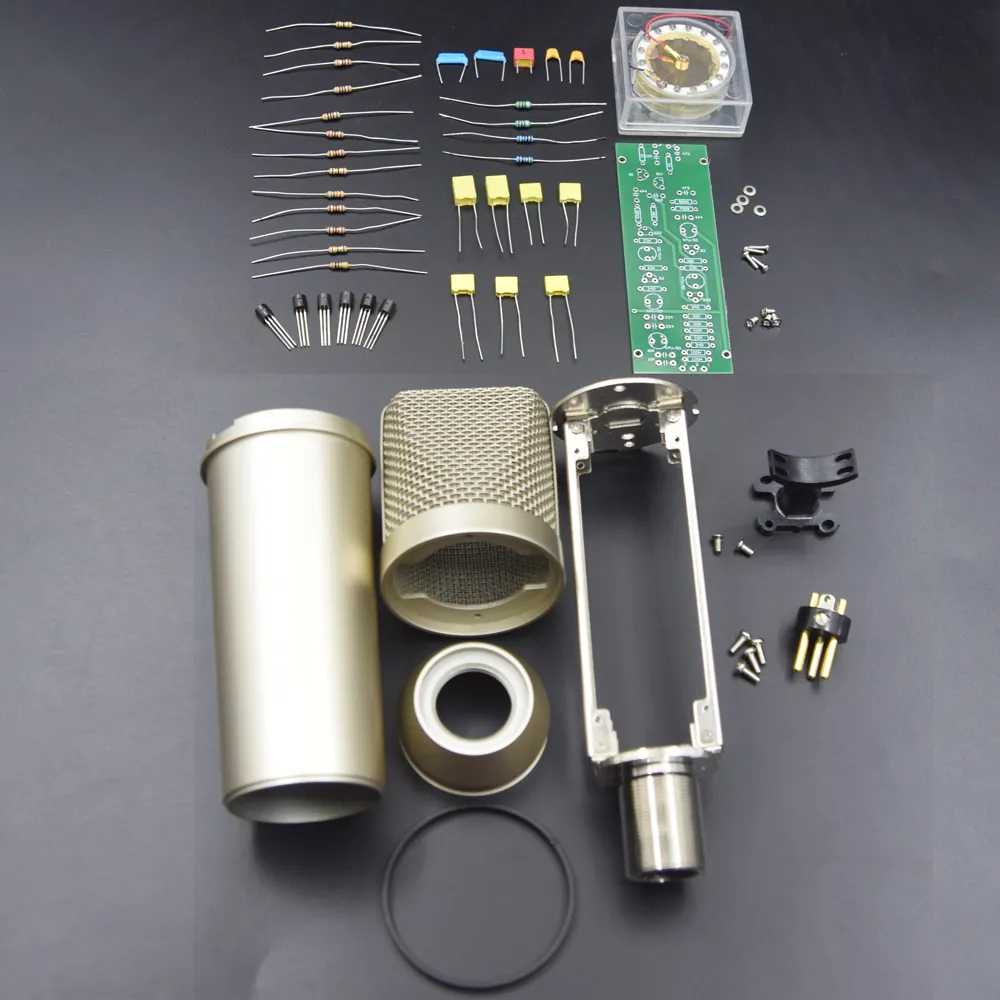

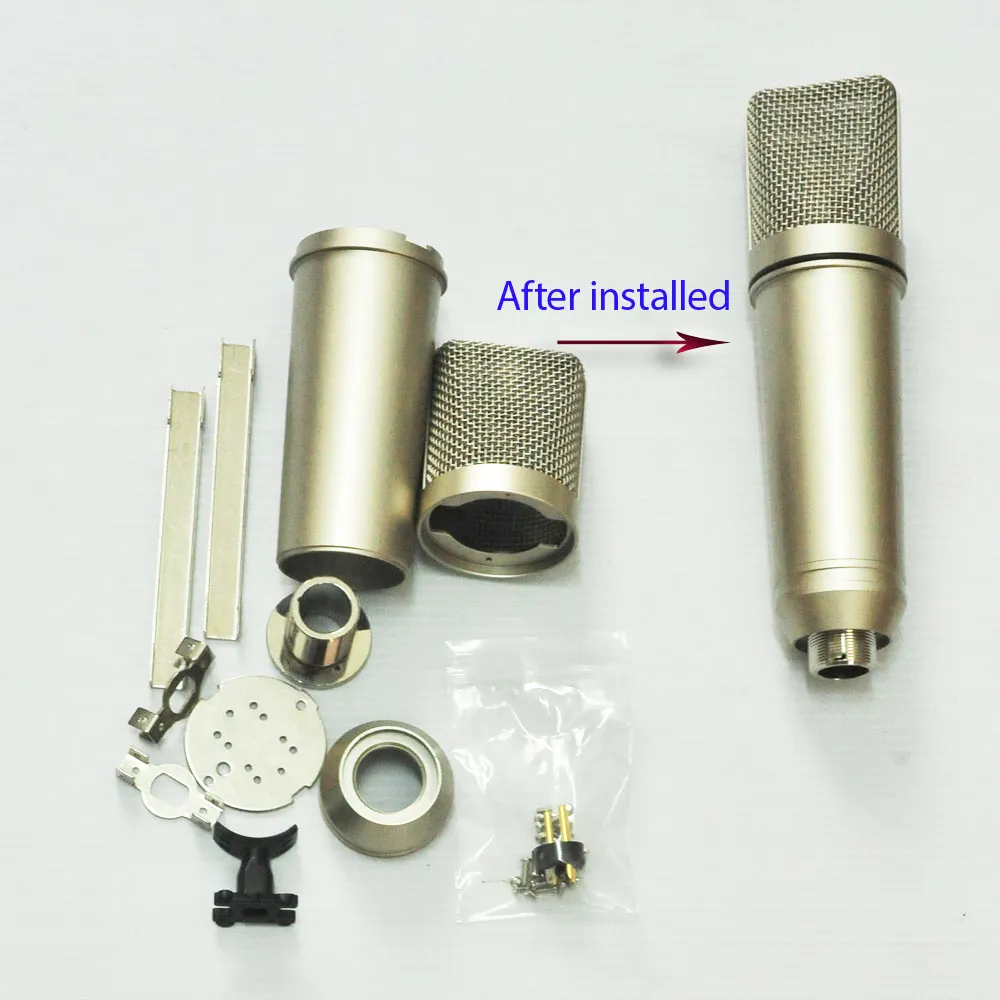

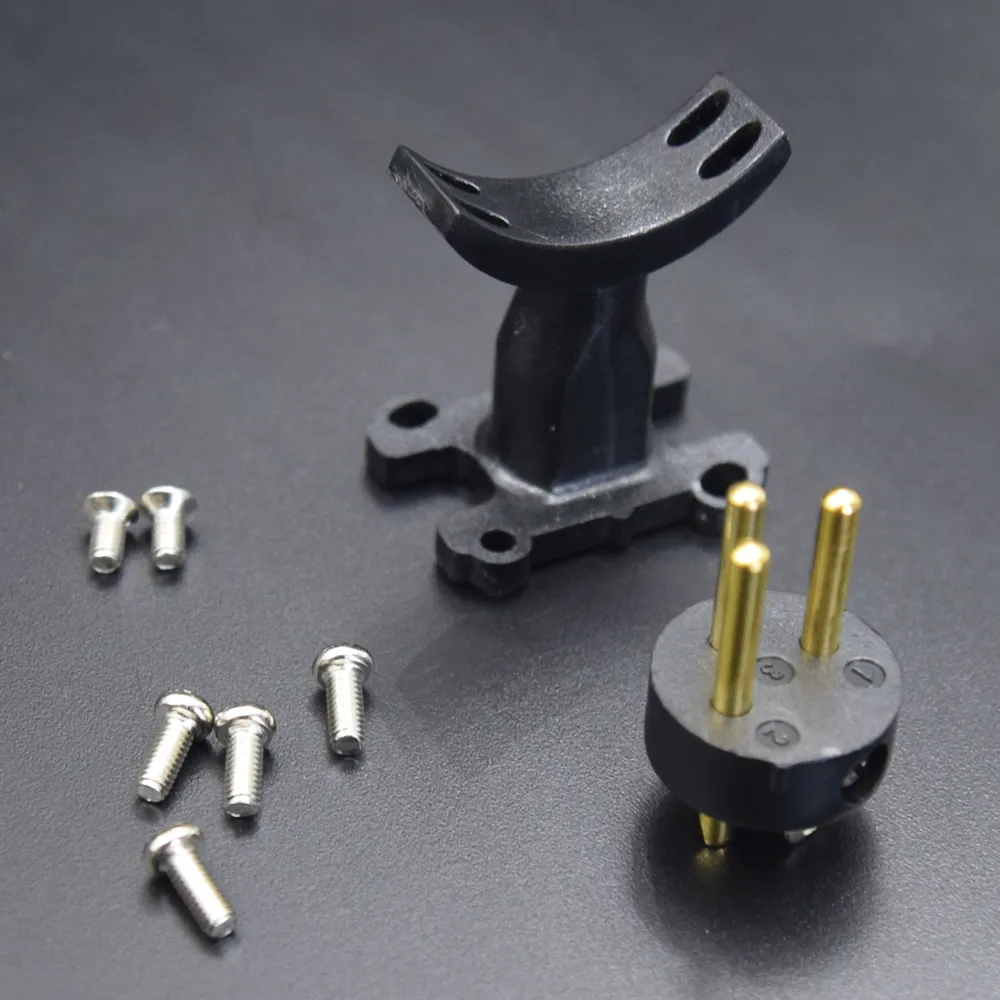

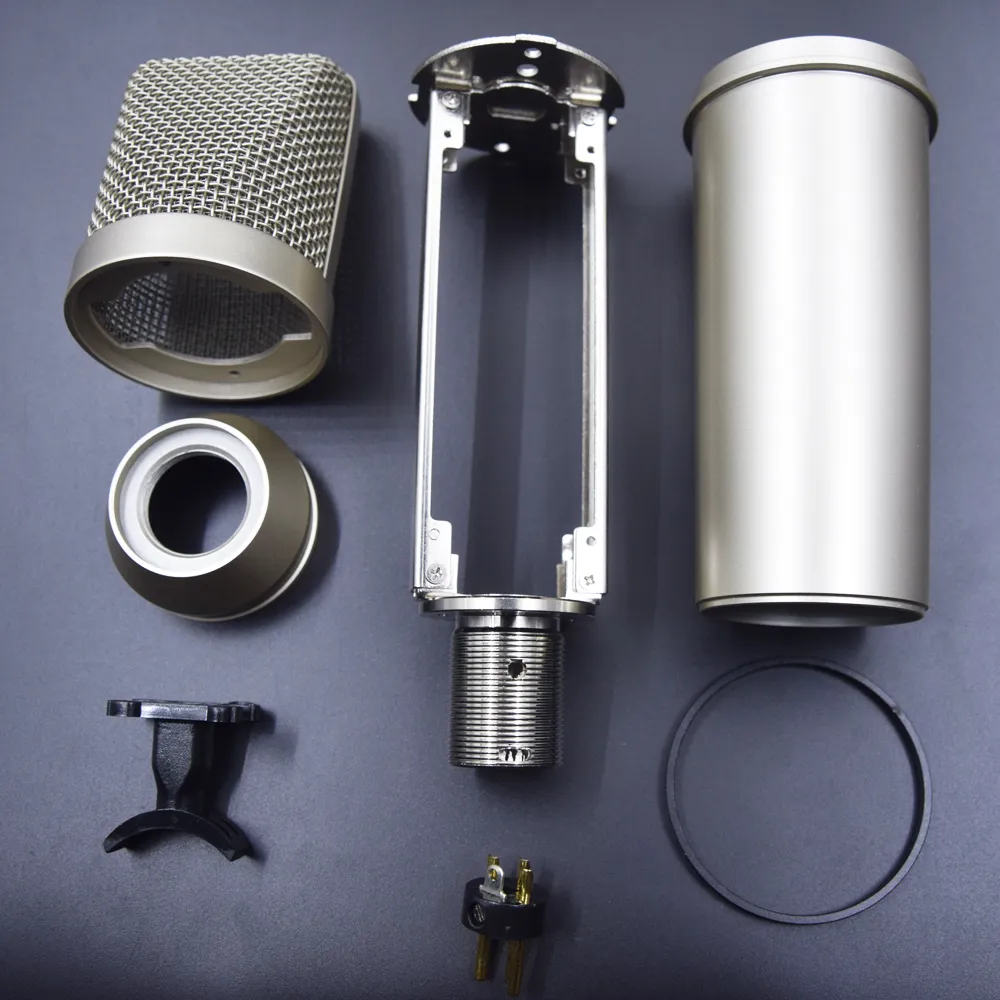

Its appearance ratio restores the structure of U87, consisting of an amplifier circuit board and a voltage board. The circuit and sound head are the same as the original product, and the sound is also similar. The technical specifications are the same, and the price is the assembled finished product. Below are pictures of the disassembled product

（Attention: The three switches have no function and are only for decorative purposes，It only points in the shape of a heart）

Frequency response range 20Hz-20KHz

Signal to noise ratio 71dB

Illusion power supply 48V

Microphone type: condenser microphone

Pointing type: heart-shaped pointing

Sensitivity 23dB-

Maximum sensitivity 130dB

Scope of application: Vocal/Musical Instruments/Percussion Music

Weight: 500g

Length: 21CM Width: 5.5CM

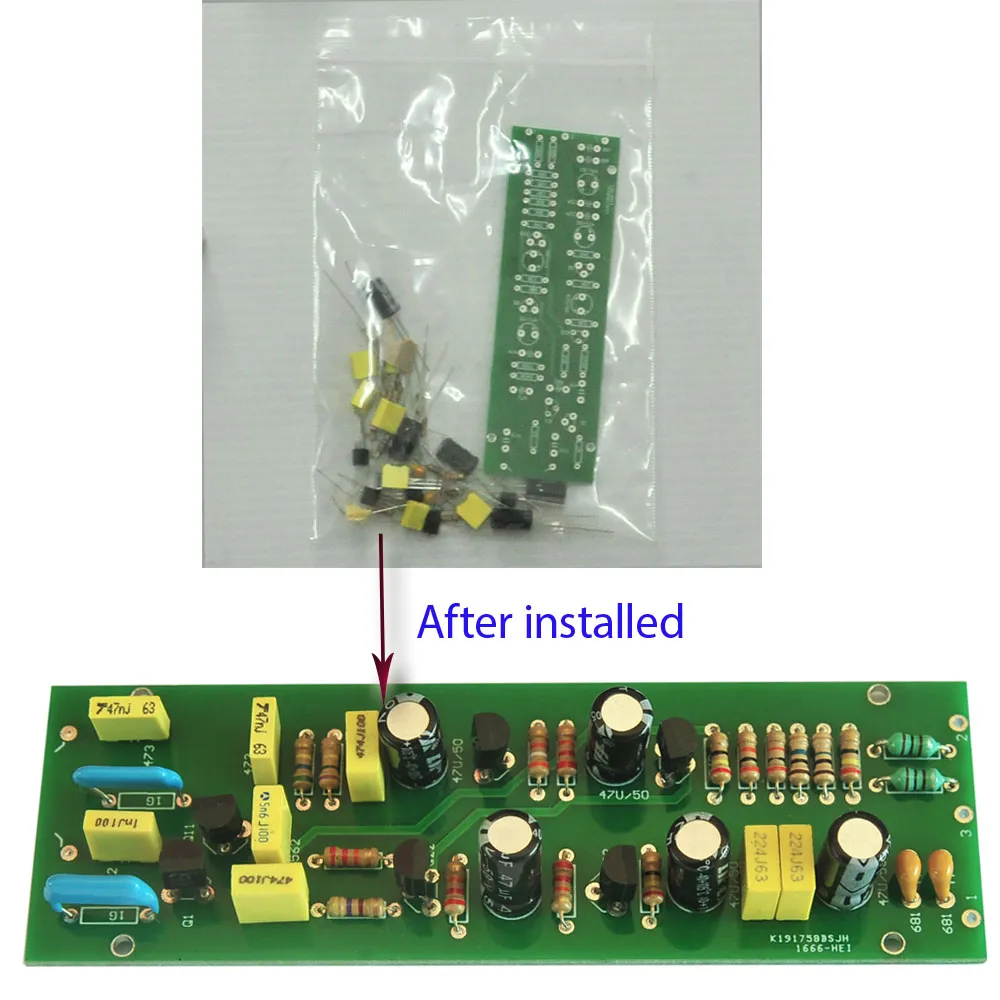

**Circuit Board Details:**
Independently designed and developed.
From PCB layout to prototyping and testing, every step is completed in-house by a single engineer.

Packing:

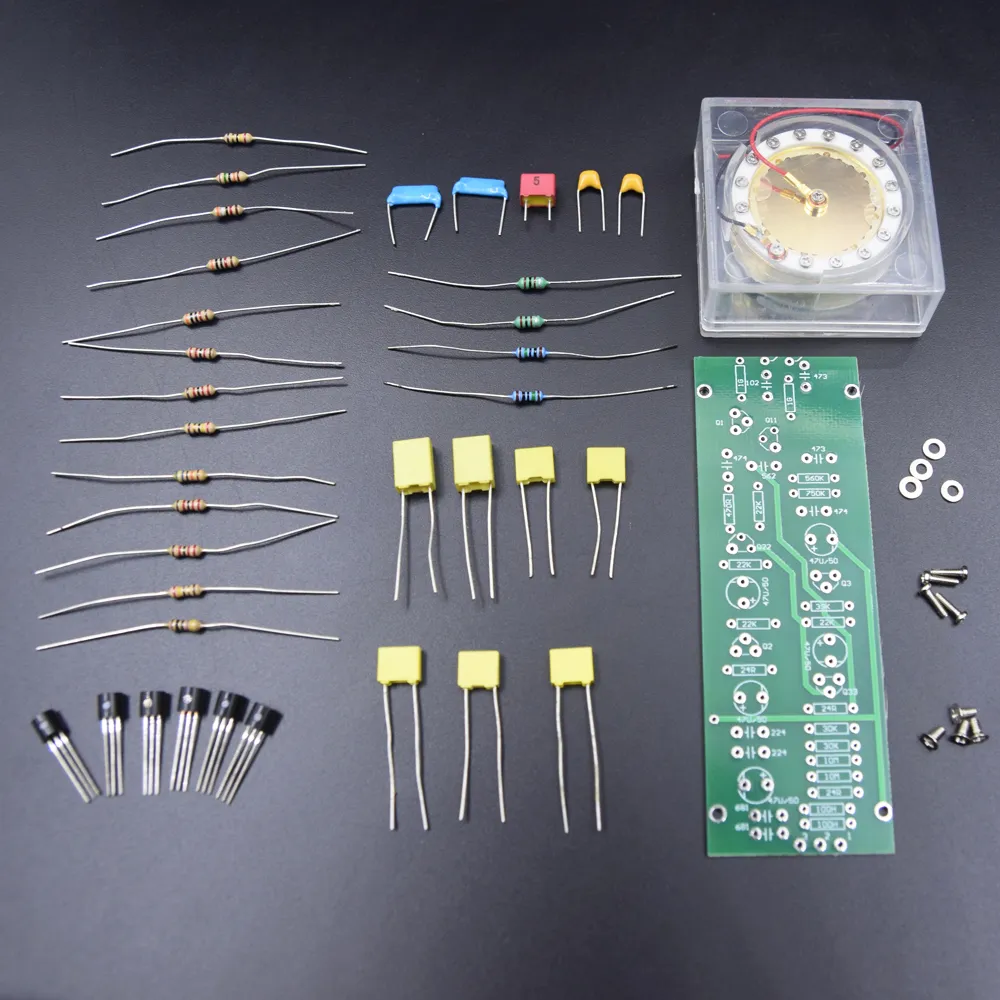

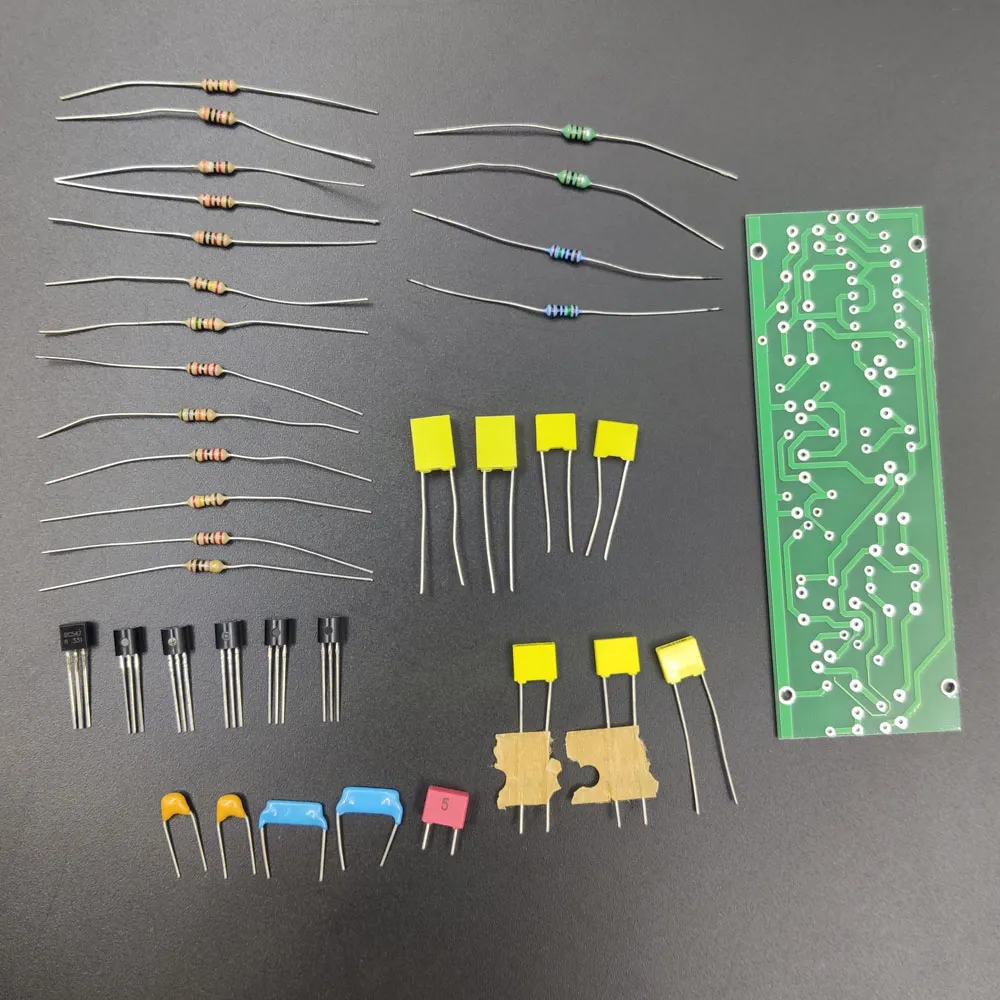

1 set uninstall microphone U87 circuit set.

Application:

Professional Studio Vocal Recording, Home Studio & Project Recording, Live Streaming & Podcasting, Voice-Over & Audiobook Narration, Broadcast & Radio Broadcasting, Film & TV Dialogue/ADR Recording, Music Instrument Miking (Acoustic Guitar, Piano, etc.), Field Recording & Location Sound, YouTube & Content Creation, Karaoke & Home Singing Practice, Conference & Interview Recording, Theater & Stage Performance, Educational & Online Teaching, Mobile Recording (with Portable Interfaces), Demo & Songwriting Sessions

Click here to order “Installed Condenser microphone u87“.

Click here to order “48v Phantom Power“.

Click here to order “Shock Mount“

Welcome to a store built on 15 years of audio engineering expertise. Every product—from our capsules to our circuits—is designed, tested, and perfected by me, a senior engineer, to deliver pro-level sound you can trust. Ready for more? Explore our full range or reach out for custom solutions—we’re here to help you sound better.
