Name: Professional HTT U47 Condenser Microphone for Home Studios
Brand: MaiAo - Diy Microphone
SKU: HTT-U47-2
Price: 529 USD
Availability: InStock

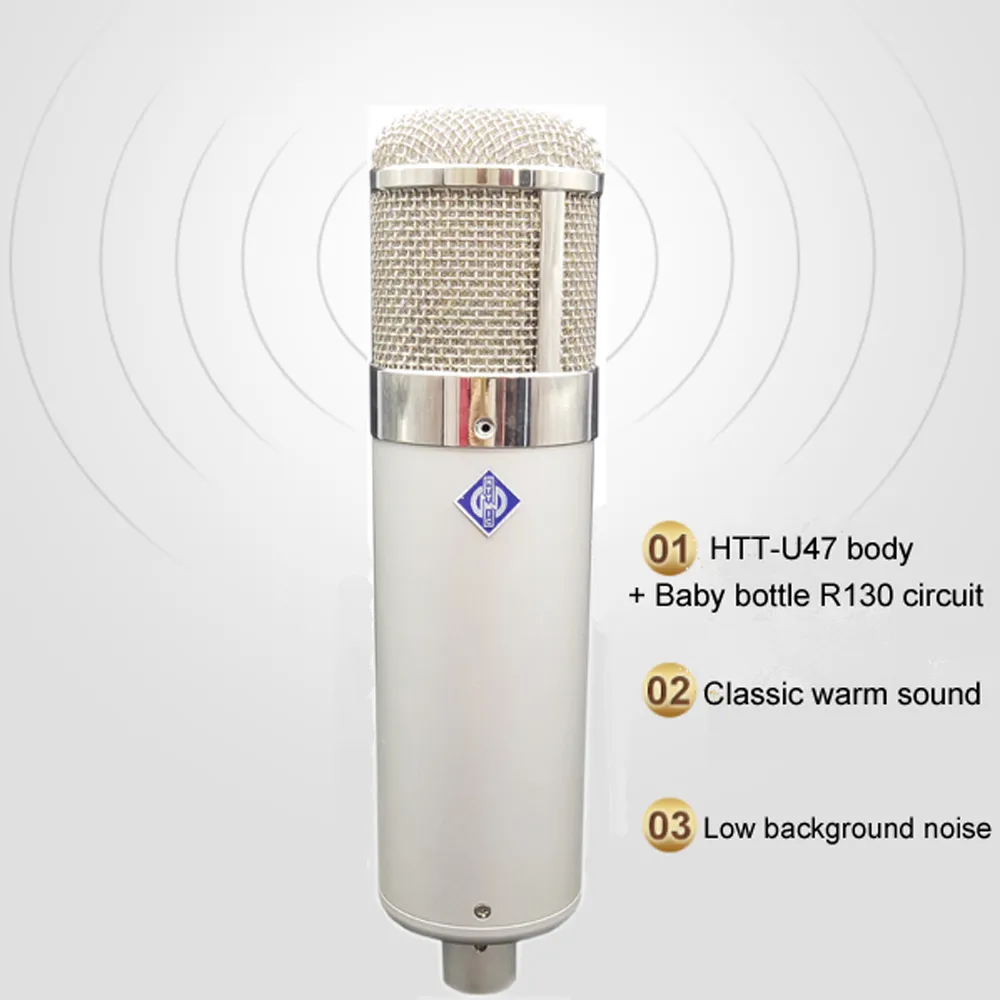

Professional HTT U47 Condenser Microphone for Home Studios

piece

Condenser Microphone for Home Studios, equipped with the legendary M7 capsule and refined circuitry once favored by Jacky Cheung, delivering vocal clarity and fidelity fit for professional recording and stage. Original design HTT U47 Condenser Microphone for Home Studios, use M7 Capsule for Studio Vocal Clarity, Karaoke & Pro Recording

16 Items sold in last

18 People watching this product now!

Music Record Sound Sample:

Specification :

Model: HTT-U47-2
Type: Piezoelectric Condenser Microphone
Capsule size: 34mm gold plated diaphragm
Frequency response range: 20Hz ~ 20KHz
Sensitivity: – 35 ～ – 50dB
Sensor type: pressure gradient, capacitance
Direction: Cardioid
Frequency response: 20Hz-20KHz
Rated choke: 50 Ω
Sensitivity: 39.8mv/pa (@ 1kHz, 0.5% THD)
Recommended load pit ≥ 1K Ω
Power supply + 48V DC phantom power supply
Volume attenuation: – 20dB
Weight: 1000kg
Volume: 240mm * 61mm

Description:

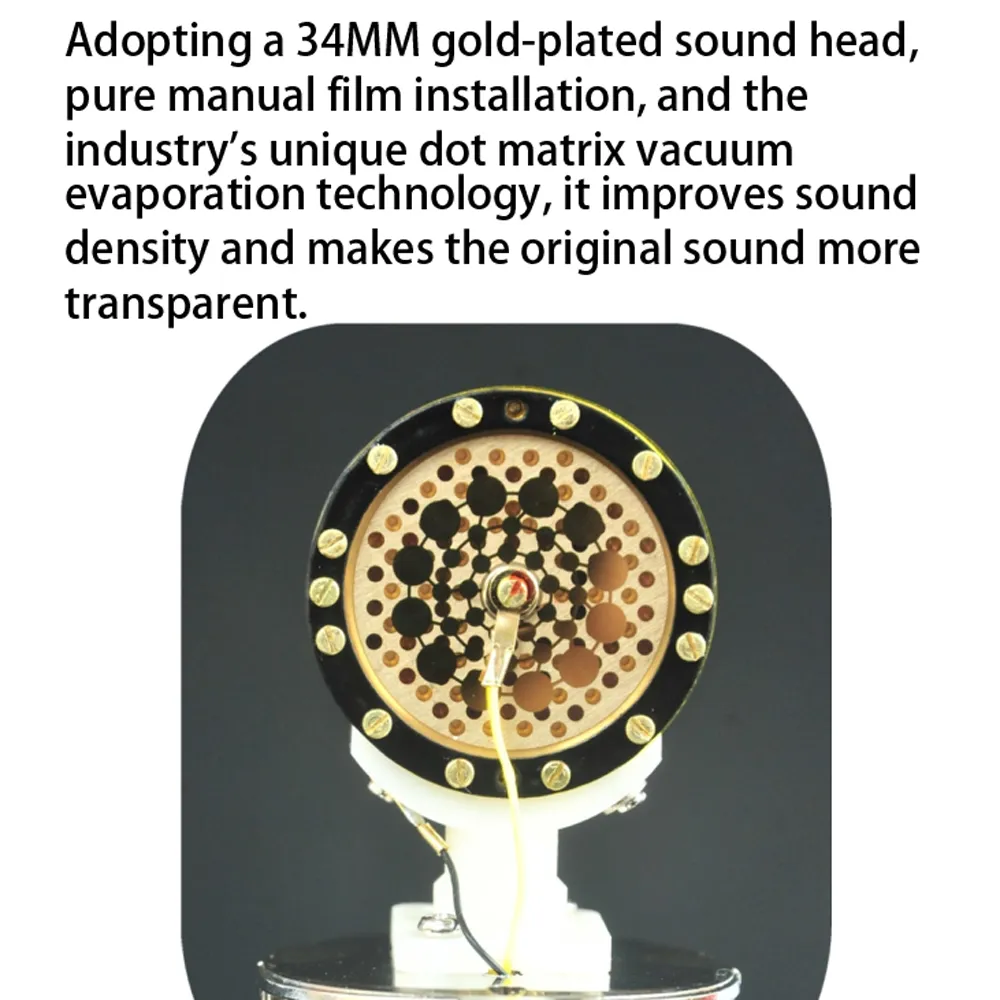

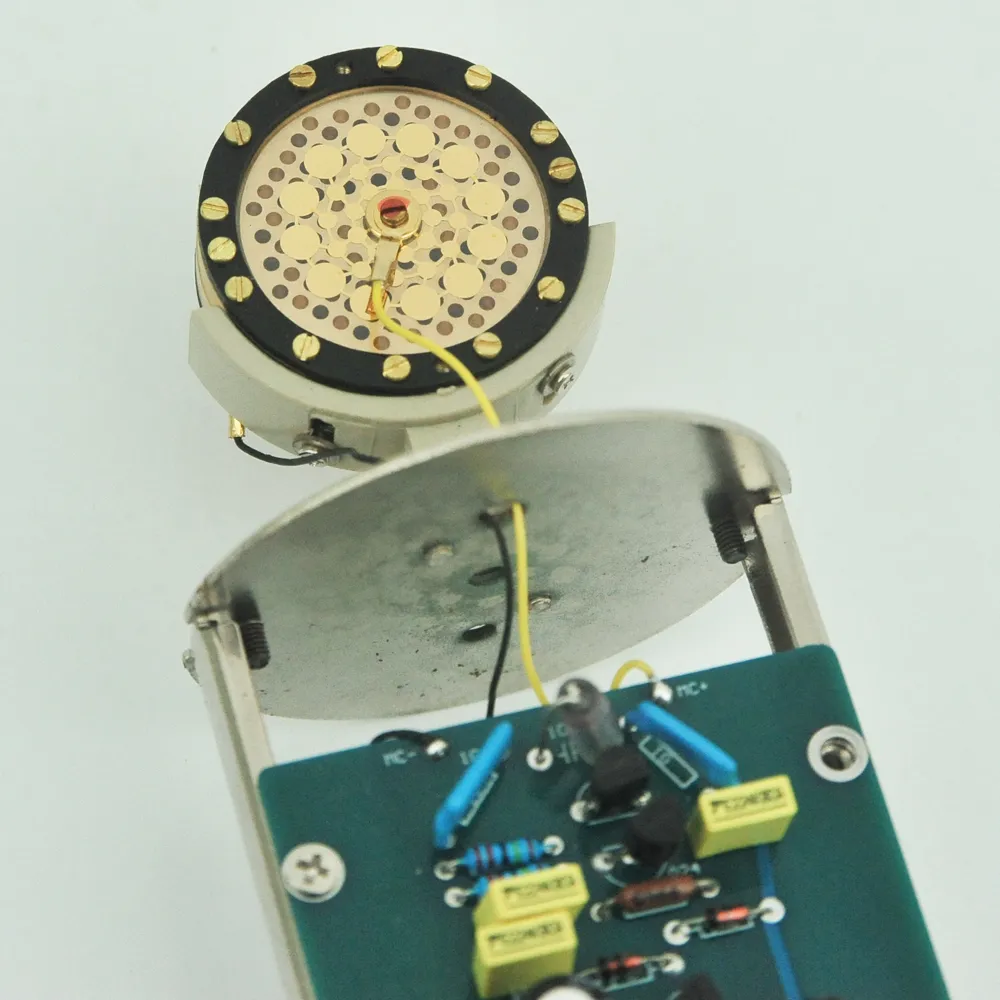

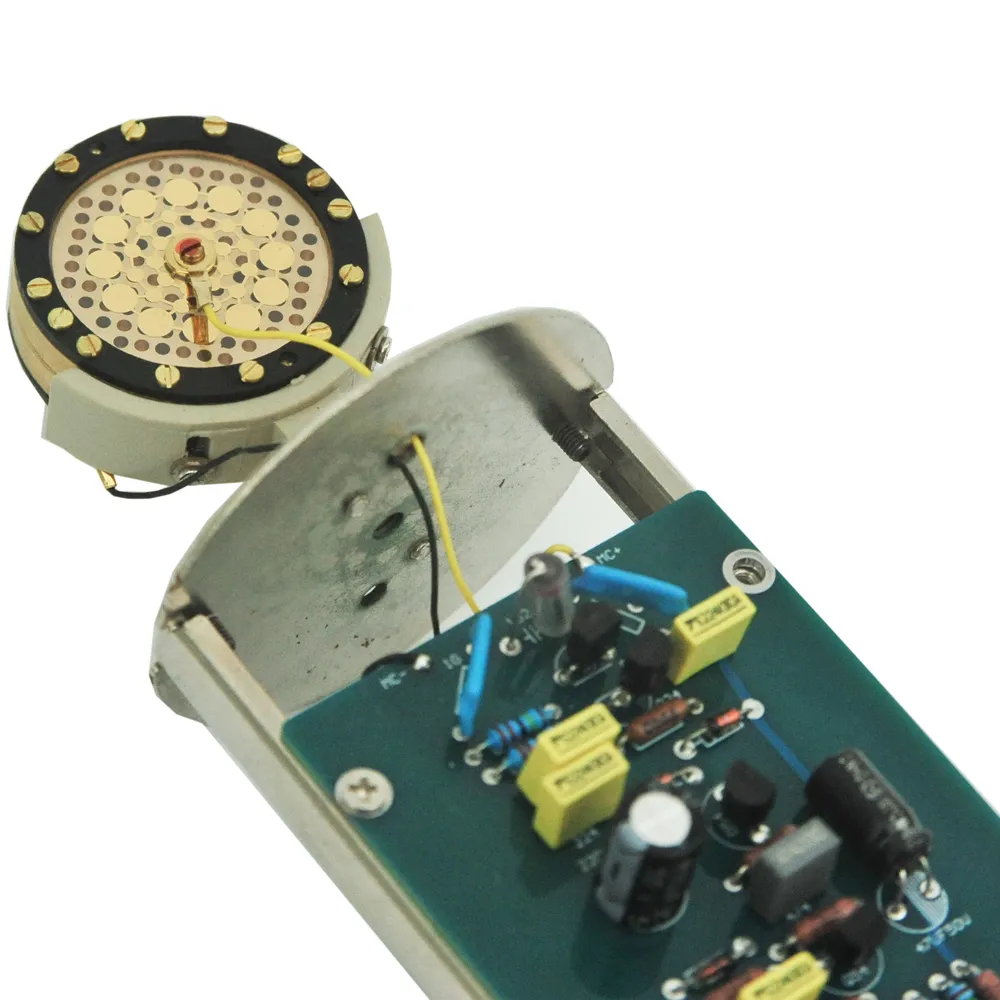

Installed with M7 large-diaphragm gold-sputtered capsule

Professional HTT U47 Condenser Microphone for Home Studios, Equipped with the renowned M7 capsule – precision-machined and rigorously assembled for an exceptionally flat frequency response, delivering high-fidelity sound reproduction.

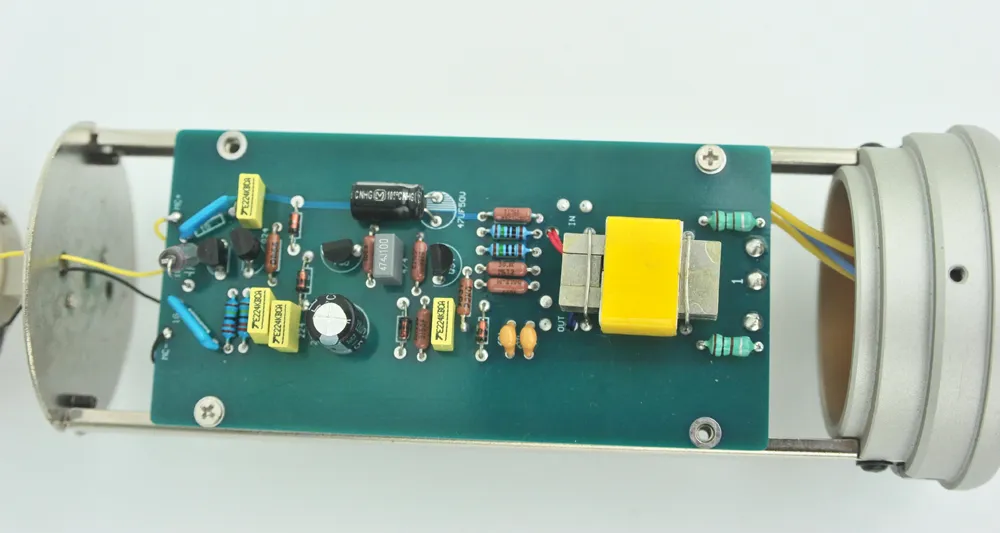

Circuit board inspired by the international Blueberry microphone design, further refined – this microphone was famously favored by Jacky Cheung for his recordings.

Premium components throughout –

U-shaped nickel alloy output transformer for clearer, more transparent sound compared to standard IE transformers.

Rare Siemens metal-film coupling capacitors (now discontinued and hard to source).

VISHAY non-inductive resistors from the USA.

Hitachi electrolytic capacitors.

Fairchild field-effect transistors from the USA.

Packing:
1pc Finished Assembled Condenser Microphone.

Condenser Microphone for Home Studios

Application:

Professional Studio Vocal Recording, Home Studio & Project Recording, Live Streaming & Podcasting, Voice-Over & Audiobook Narration, Broadcast & Radio Broadcasting, Film & TV Dialogue/ADR Recording, Music Instrument Miking (Acoustic Guitar, Piano, etc.), Field Recording & Location Sound, YouTube & Content Creation, Karaoke & Home Singing Practice, Conference & Interview Recording, Theater & Stage Performance, Educational & Online Teaching, Mobile Recording (with Portable Interfaces), Demo & Songwriting Sessions
