Product name:U47

  • Price: 299.99
  • Item number: HTT-U47
  • Specification:
  • Model: HTT-U47R013 (Latest version)
  • Type: Piezoelectric Condenser Microphone

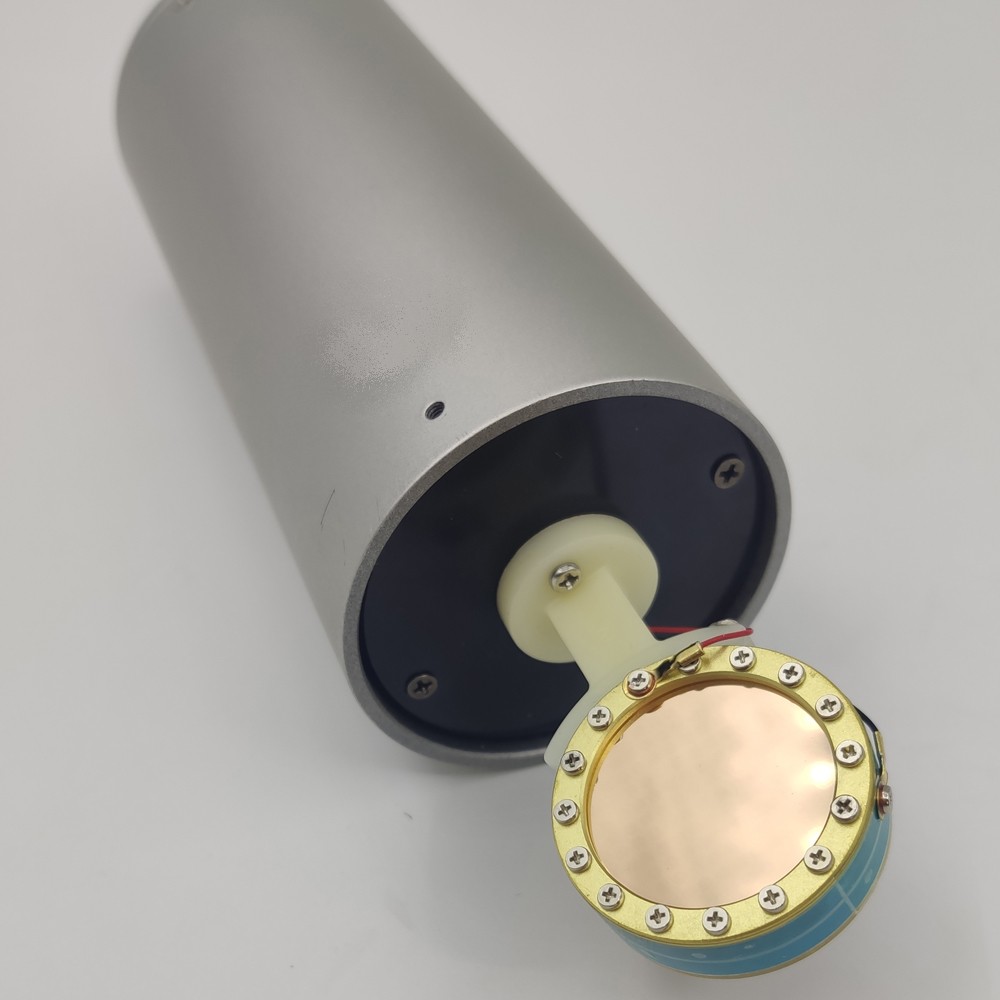

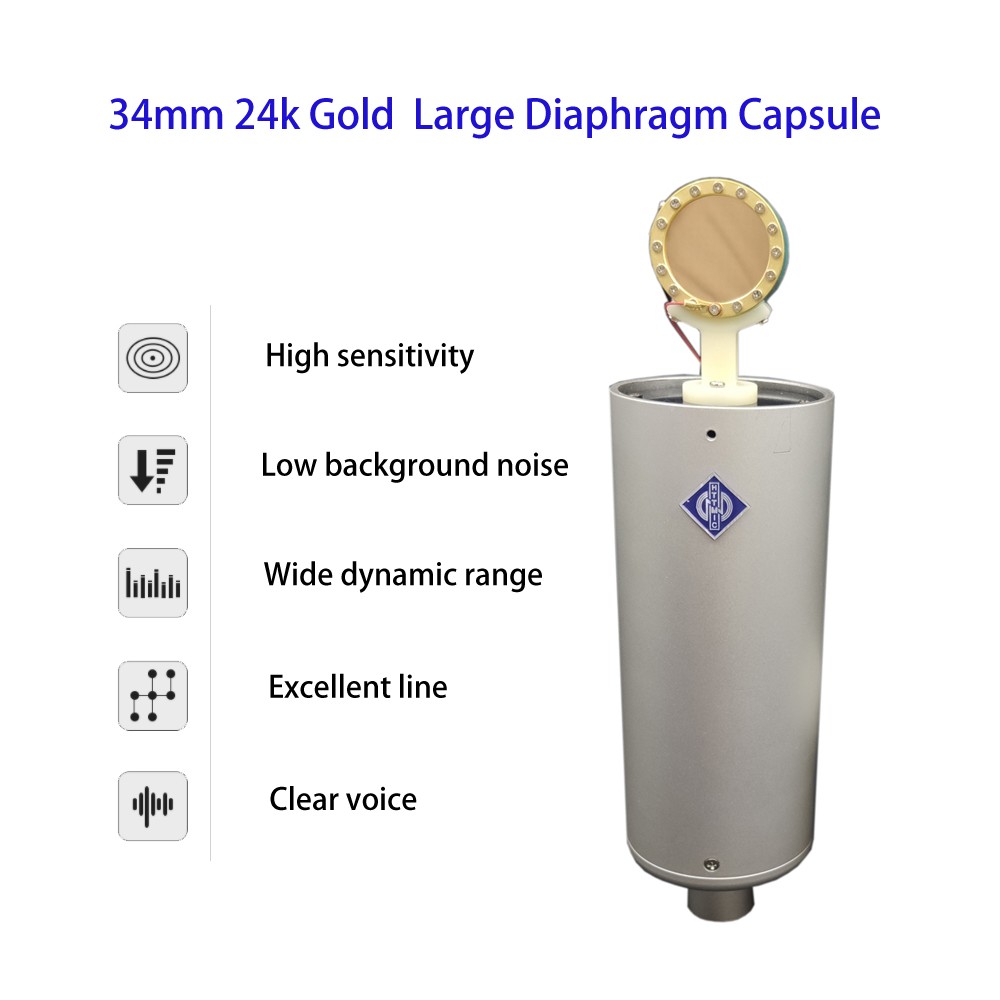

  • Capsule size: 34mm gold plated diaphragm
  • Frequency response range: 20Hz ~ 20KHz
  • Sensitivity: - 35 ~ - 50dB Sensor type
  • capacitance Direction: Cardioid Frequency
  • response: 20Hz-20KHz
  • Rated choke: 50 Ω

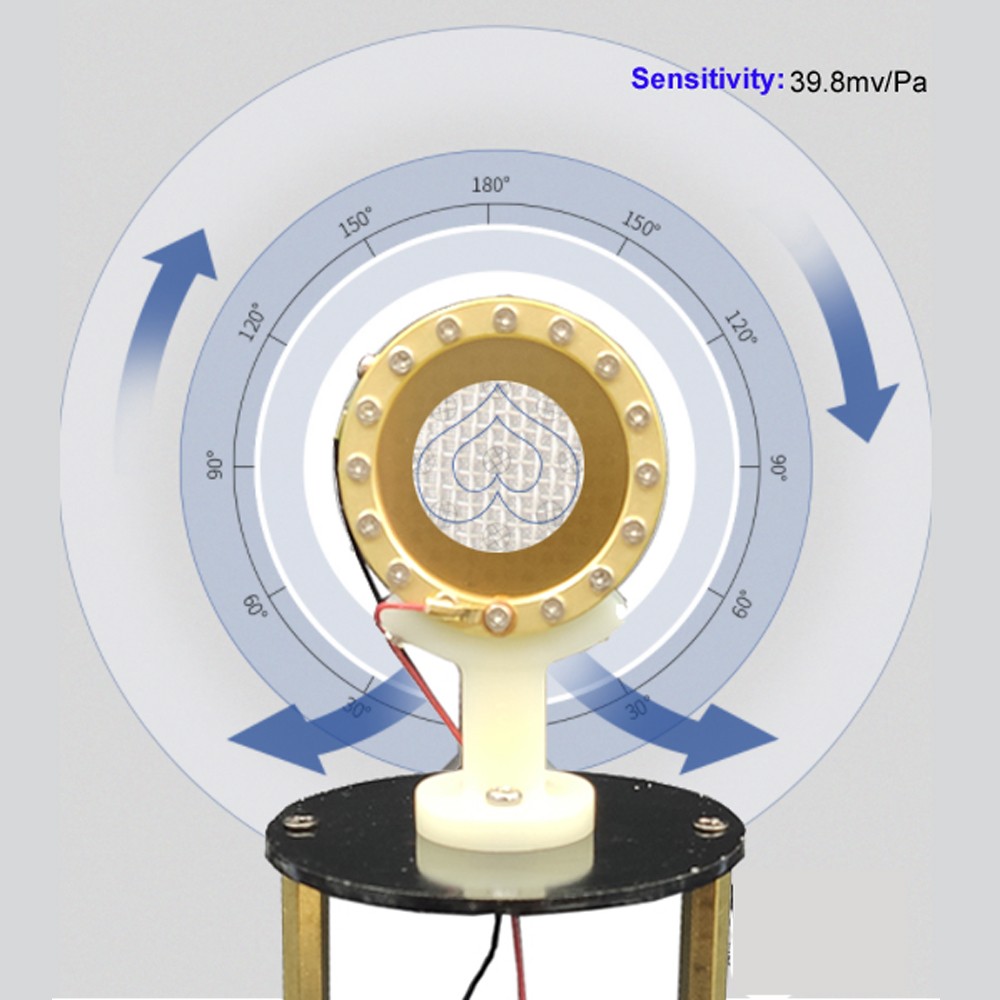

  • Sensitivity: 39.8mv/pa (@ 1kHz, 0.5% THD)
  • Recommended load pit ≥ 1K Ω Power supply + 48V DC phantom power supply :
  • Volume attenuation: - 20dB Weight
Contact Us

750x1000 no logo.jpg

Professional Live Vocal Podcast Studio Recording U47 Microphone Stereo 34mm Large Diaphragm Cardioid Condenser Microphone


High sensitivity Low background noise Wide dynamic range Excellent line Clear voice


Feature:

This microphone use HTT-U47 mic body, but the circuit is study from Baby Bottle R130, this microphone is very popular for Singing performance, radio anchor, electrophonic musical instrument or audio, mobile phone computer Video webcast. Because his high frequency is more delicate and his medium frequency is more prominent, Low frequency will not reduce a lot, so many domestic microphones like to imitate this model, its voice is very bright.

Good price to choose DIY HTT-47&130:

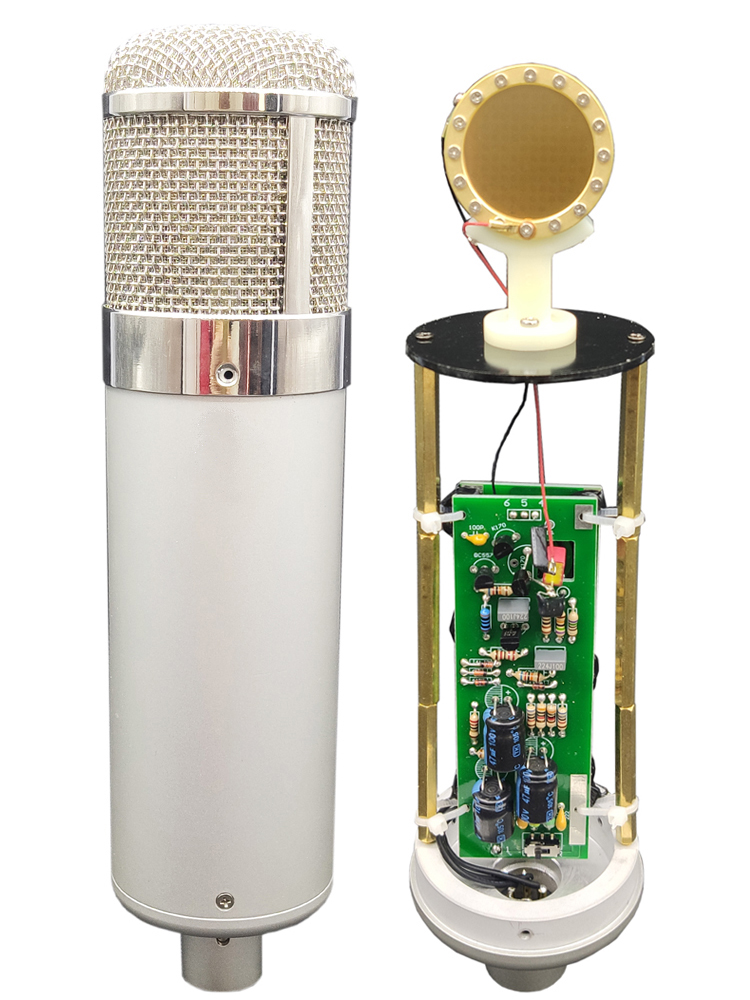

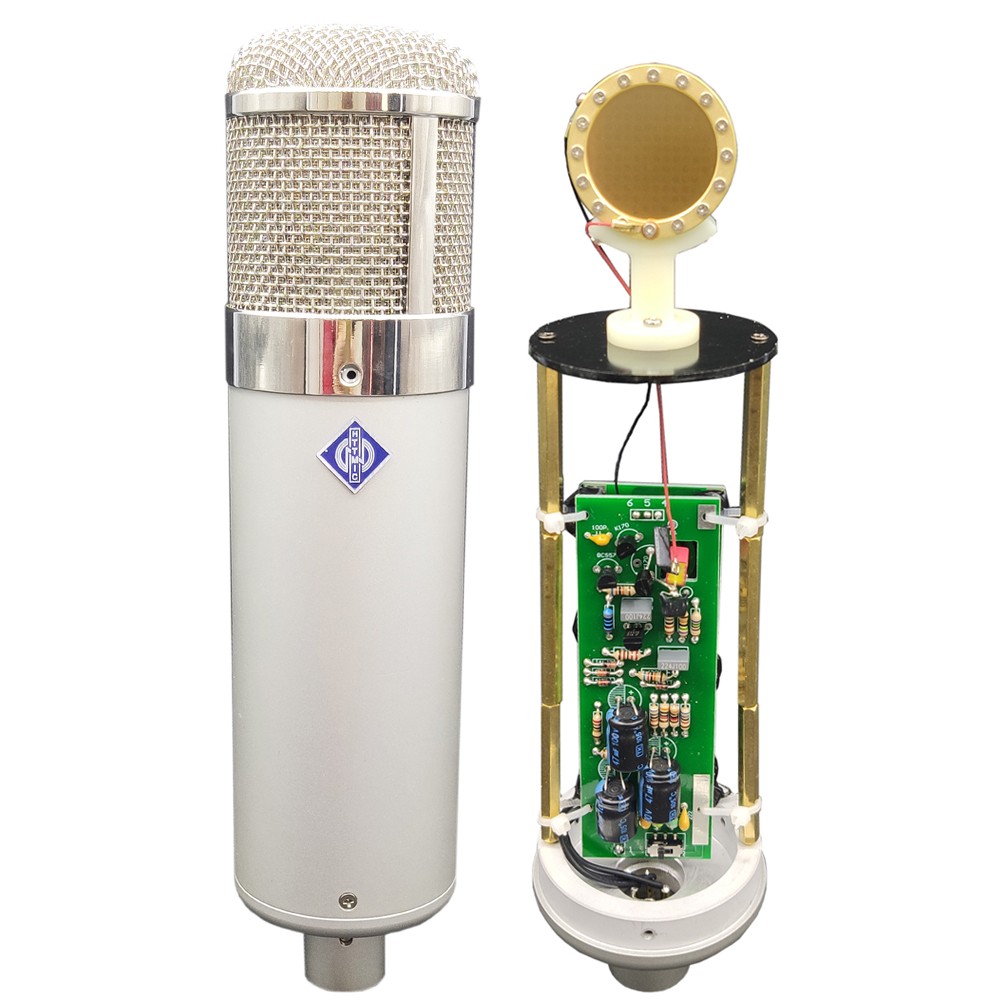

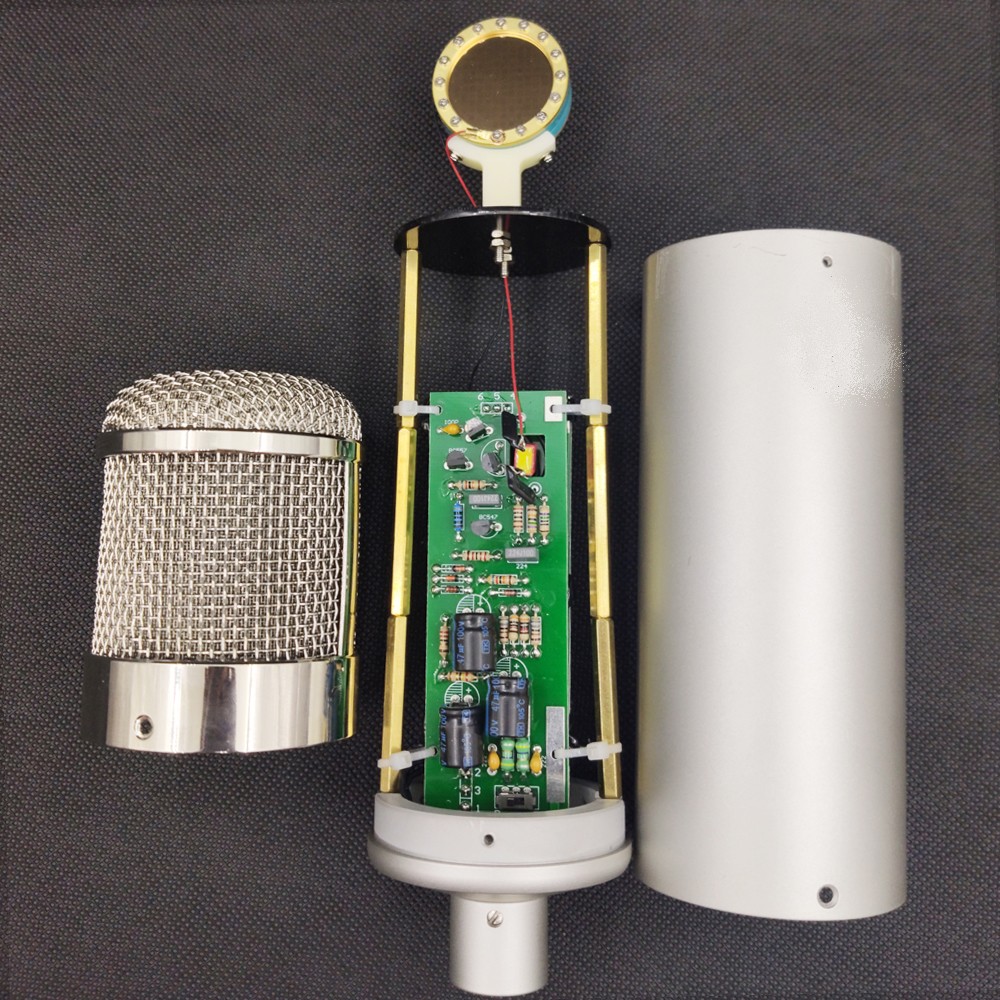

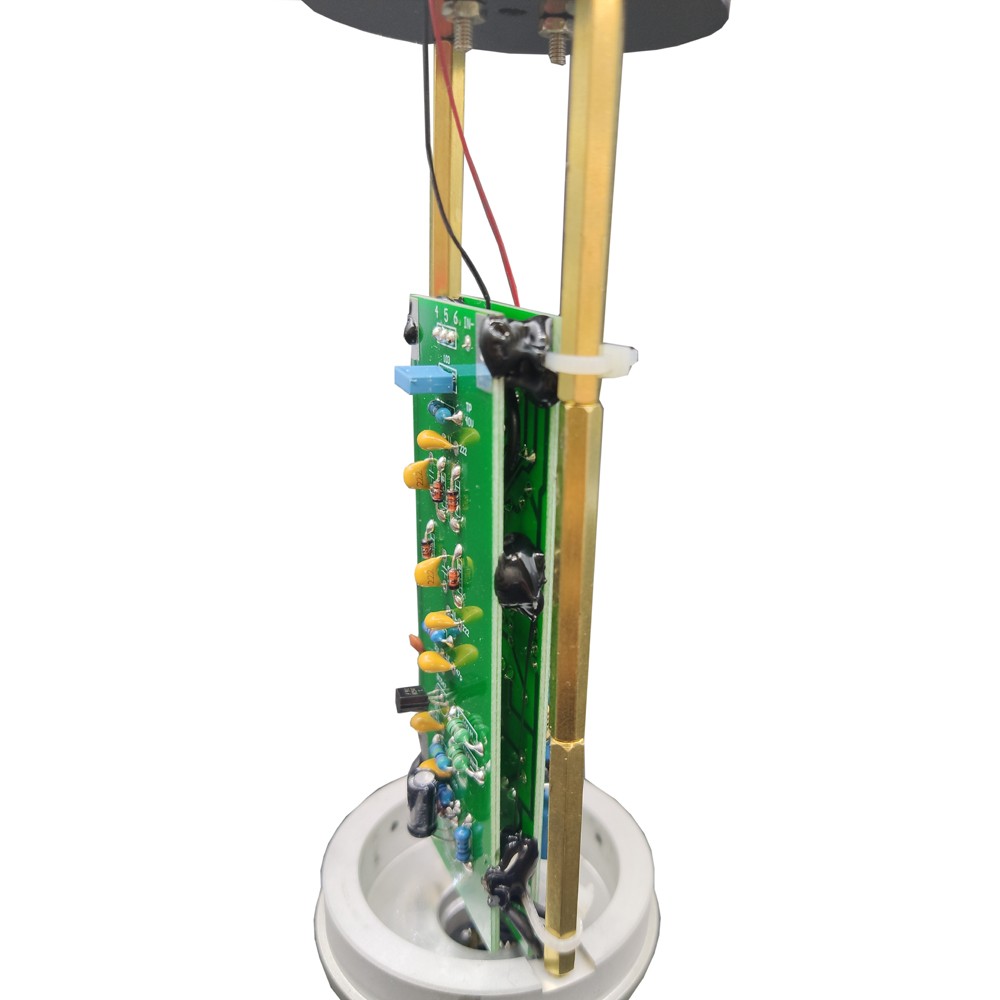

We use 34mm golden capsule, the circuit materials used are: Hongweima coupling capacitor, Japanese brand field transistor, American Fairchild transistor and non inductive fever resistor. The sound quality is very good. About the sound quality effect, compared with the original, the sound similarity is more than 90%, Buyers who hold the original microphone are welcome to buy and compare. Our DIY products are made by hand. The sound quality is tested one by one, and the components are made of high quality materials, it is absolute conscience price.

The difference for HTT47&130 with original R130:

1.High frequency: our high frequency is smaller. 2.Middle/Low frequency: ours is similar to the original one. We use Chinese capsule, while our the circuit is the same, the parts we used is similar to theirs, so the sound quality is similar. 3. The original R130 sell over 500usd while our price is half, and we use the good looking heavy


Packing:

Pls choose it from the link: 1. Finished install Microphone 2. Finished install Mic+ Red stand+ spray cover 3. Finished install Mic+ Black stand+spray cover

Sound sample

The music of this product video is recorded by this microphone. This music is provided by our customer. (Welcome you provide your record, we could give you discount when repeat order) 1.Real Baby Bottle compare with our microphone: 0-65s is record sound for real Baby Bottle, 66-162s is record sound for our microphone http://pan.baidu.com/s/14m6ui 2. Music record from buyer. https://pan.baidu.com/s/1b9iz9O


Specification: Model: HTT-U47R013 (Latest version) Type: Piezoelectric Condenser Microphone Capsule size: 34mm gold plated diaphragm Frequency response range: 20Hz ~ 20KHz Sensitivity: - 35 ~ - 50dB Sensor type: pressure gradient capacitance Direction: Cardioid Frequency response: 20Hz-20KHz Rated choke: 50 Ω Sensitivity: 39.8mv/pa (@ 1kHz, 0.5% THD) Recommended load pit ≥ 1K Ω Power supply + 48V DC phantom power supply Volume attenuation: - 20dB Weight: 1000kg Volume: 240mm * 61mm
